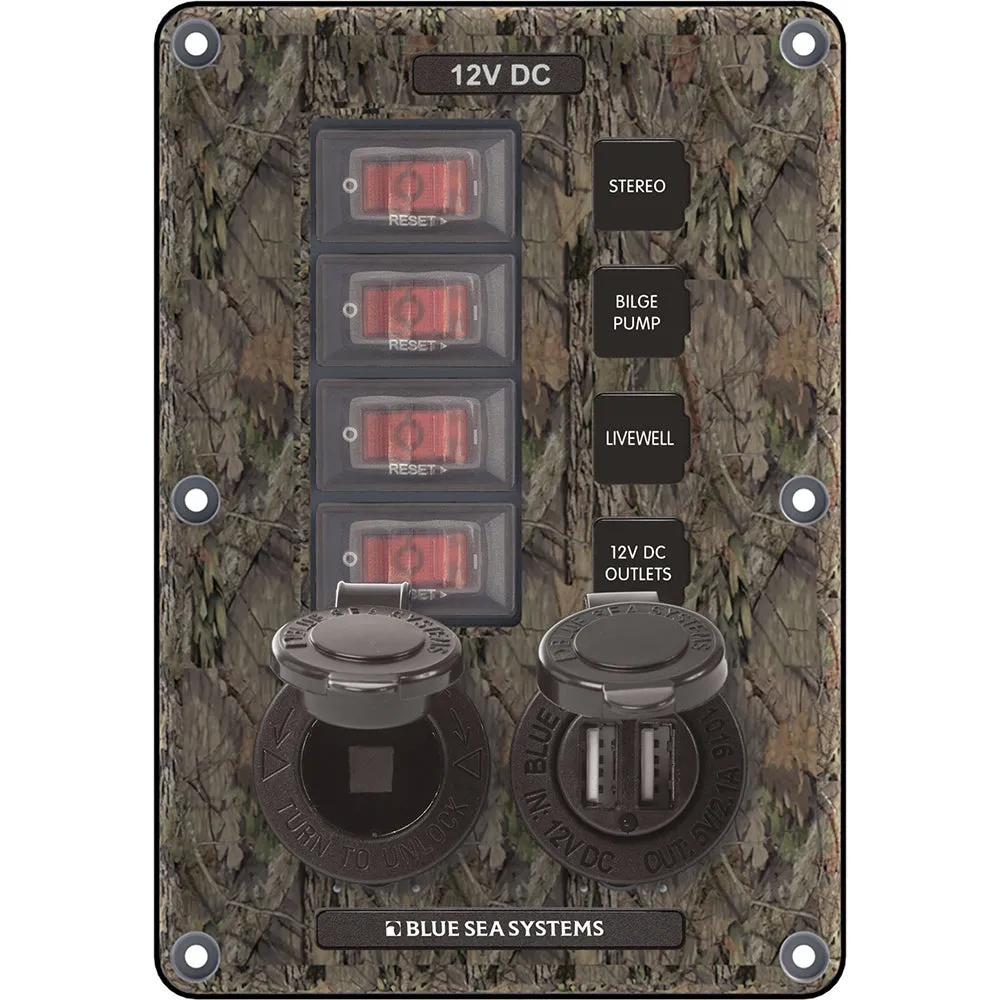

4324 Circuit Breaker Switch Panel 4 Postion - Camo with 12V Socket & Dual USB

Designed for exposed mounting applications.

Features:

• Illuminated 15A circuit breakers provide switching, ON indication and overcurrent protection
• Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
• Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
• Silicon breaker boots and gasket protects against water ingress
• Low profle makes it easy to install in tight spaces
• Fast-on circuit breaker connectors make it quick to wire
• Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
• Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

• Color: Camo
• Positions: 4
• Nominal Voltage: 12 VDC
• Maximum Amperage: 45A
• Terminal Type: 1/4" Male Quick Connect
• Hardware: Stainless Steel #6 x 5/8" mounting screws
• Ring Terminal Size: M5 (#10)

Specifications:

• Voltage: 12v
• AC/DC: DC
• Max Breaker Quantity: 4
• Waterproof: Resistant
• Box Dimensions: 3"H x 6"W x 10"L WT: 0.7 lbs
• UPC: 632085043247
