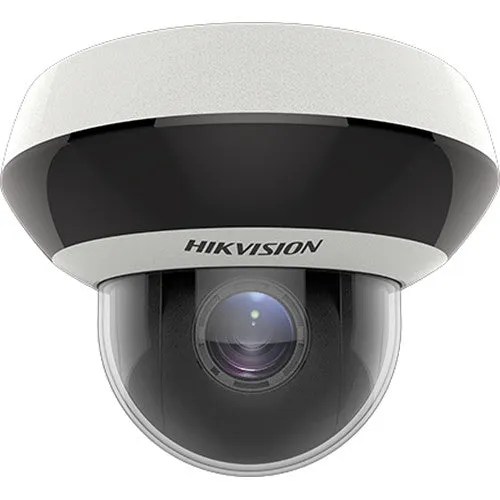

The DS-2DE2A404IW-DE3 4MP Outdoor PTZ Network Dome Camera from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 24 fps. IR LEDs provide up to 65' of night vision. The 2.8-12mm motorized varifocal lens delivers a 100 to 33° horizontal field of view. The camera features a 0 to 330° pan range, a 0 to 90° tilt range, and 4x optical zoom. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
DarkFighter technology for low-light conditions
IR cut filter enables day and night functionality
Smart IR
H.265 , H.265, H.264 , H.264, and MJPEG video compressions
Scalable video coding (SVC)
Triple streaming
Region of interest (ROI) for each stream respectively supports four fixed areas
4x optical and 16x digital zooms
Zoom speed of 2 seconds
0.4 to 59" minimum working distance
Auto, semi-auto, and manual focus modes
120 dB wide dynamic range
Auto and manual gain control
White balance modes include auto, manual, ATW, indoor, outdoor, fluorescent lamp, and sodium lamp
Image enhancements include 3D-DNR, highlight compensation, electronic image stabilization (EIS), regional exposure, and regional focus
24 programmable privacy masks
Analytics include motion, video tampering, exception, face, intrusion, line crossing, region entrance, region exiting, object removal, unattended baggage, and audio exception detection
Dual VCA and ANR smart recording
Up to 20 channels in simultaneous live view
Up to 32 users with 3 host levels (admin, operator, and user)
100M Ethernet port
Audio input and output
Compatible with Internet Explorer 8-11, Chrome 31.0-44, Firefox 30.0-51, iOS, Android, iVMS-4200, iVMS-4500, and Hik-Connect
Network-attached storage support
CSA, FCC, CE, and cUL certified
TVS 4000V lightning, surge, and voltage transient protection
PTZ Functions
- 0 to 330° pan range
- 0.1 to 100°/s pan speed
- 100°/s preset pan speed
- 0 to 90° tilt range
- 0.1 to 100°/s tilt speed
- 100°/s preset tilt speed
- 300 presets
- Support for proportional zoom and power-off memory
