Looking to speed up your alignment jobs with cutting-edge precision? The Rotary R1085 Pro 3D Alignment System is designed for tire techs and mechanics needing fast, accurate alignments without a dedicated bay. This tower-free system uses patented 3D-target imaging and Bluetooth-connected cameras, making it 30% faster than standard aligners. Operated via a 10-inch Android tablet, the R1085 allows complete control from anywhere in the bay, reducing steps and enhancing workflow efficiency. With quick-locking, rim-friendly clamps, and portable design, it’s a reliable solution for professionals seeking to maximize productivity and shop space.
Features:
- 30% faster alignments boost shop productivity and efficiency

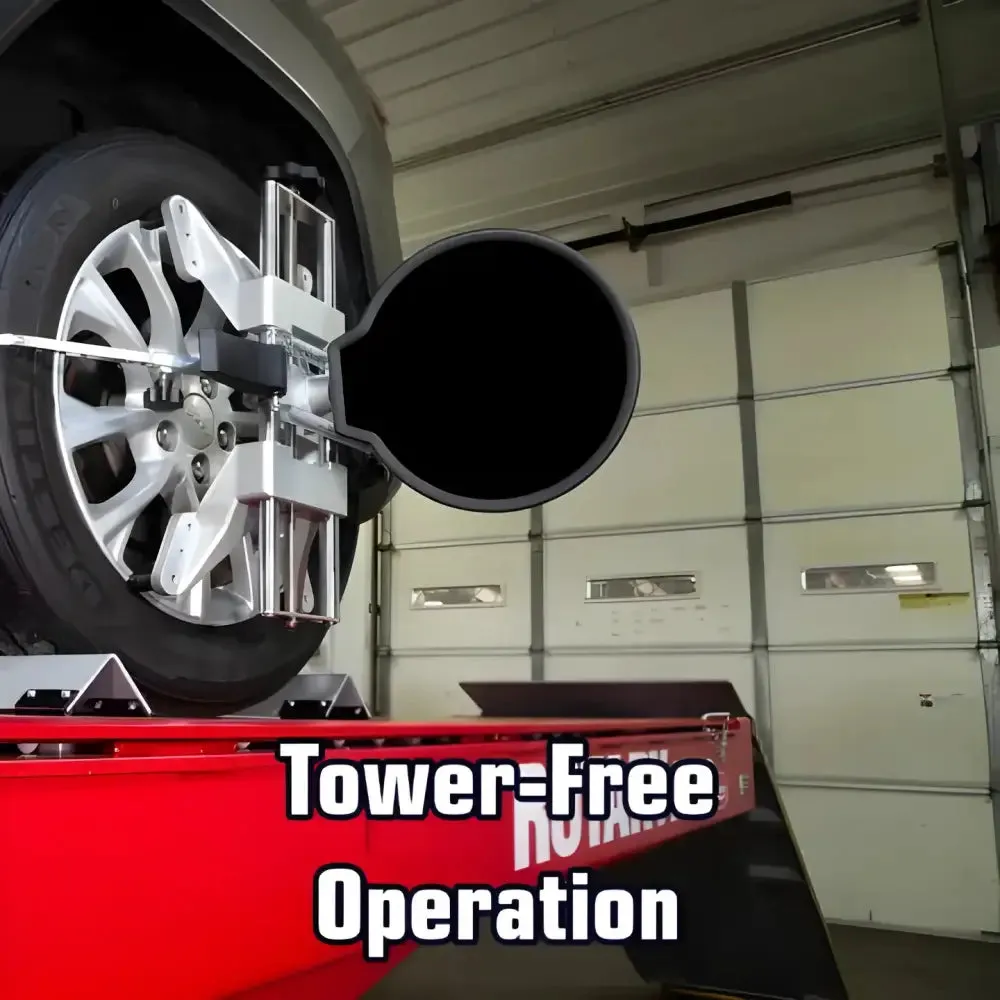

- Tower-free design allows full bay access and flexibility

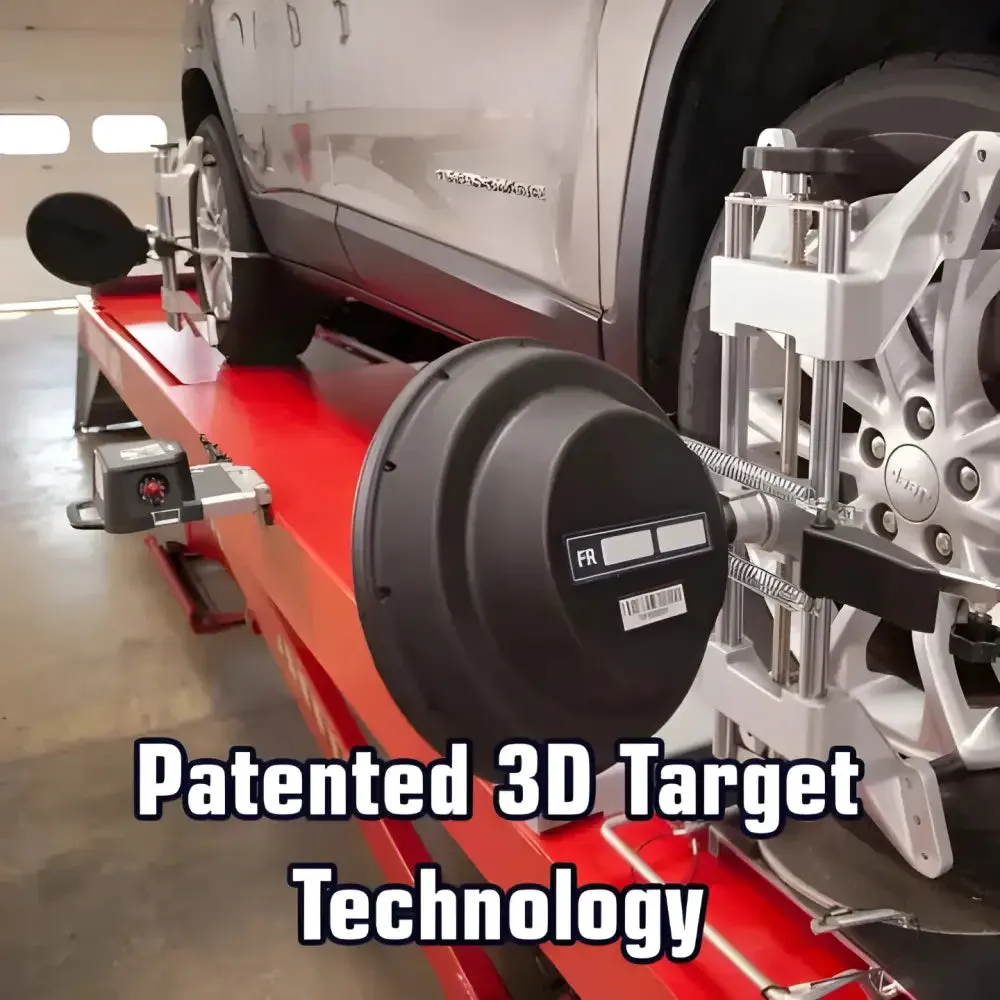

- Patented 3D-target imaging delivers precise alignment readings

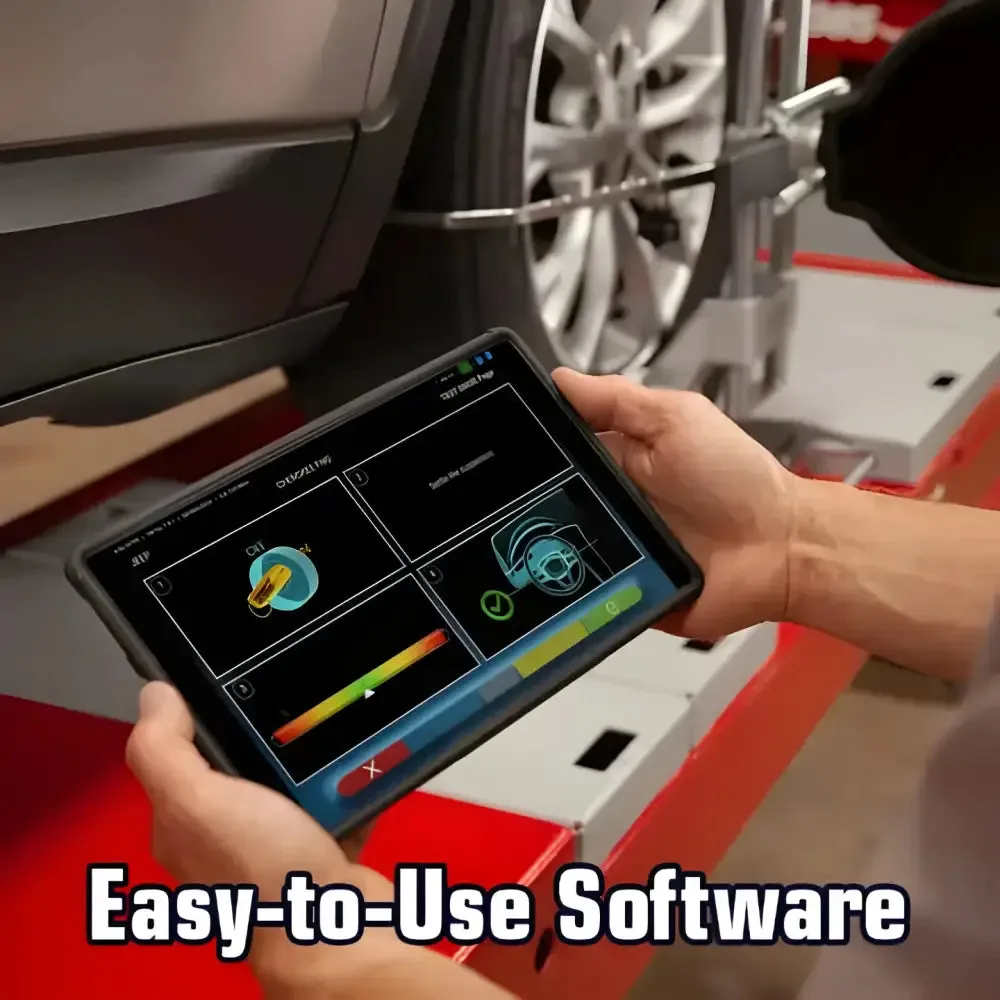

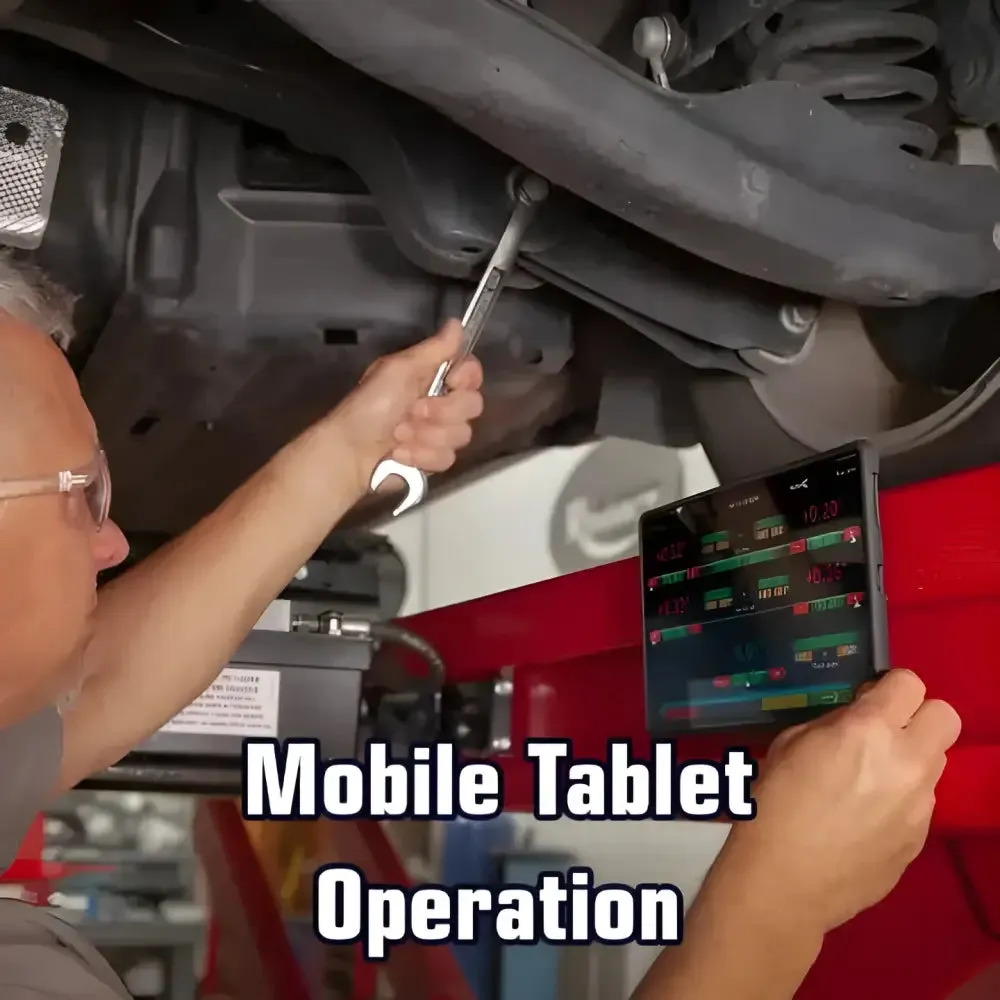

- 10in Android tablet for mobile, easy alignment control
- Bluetooth-connected cameras eliminate cables and obstructions

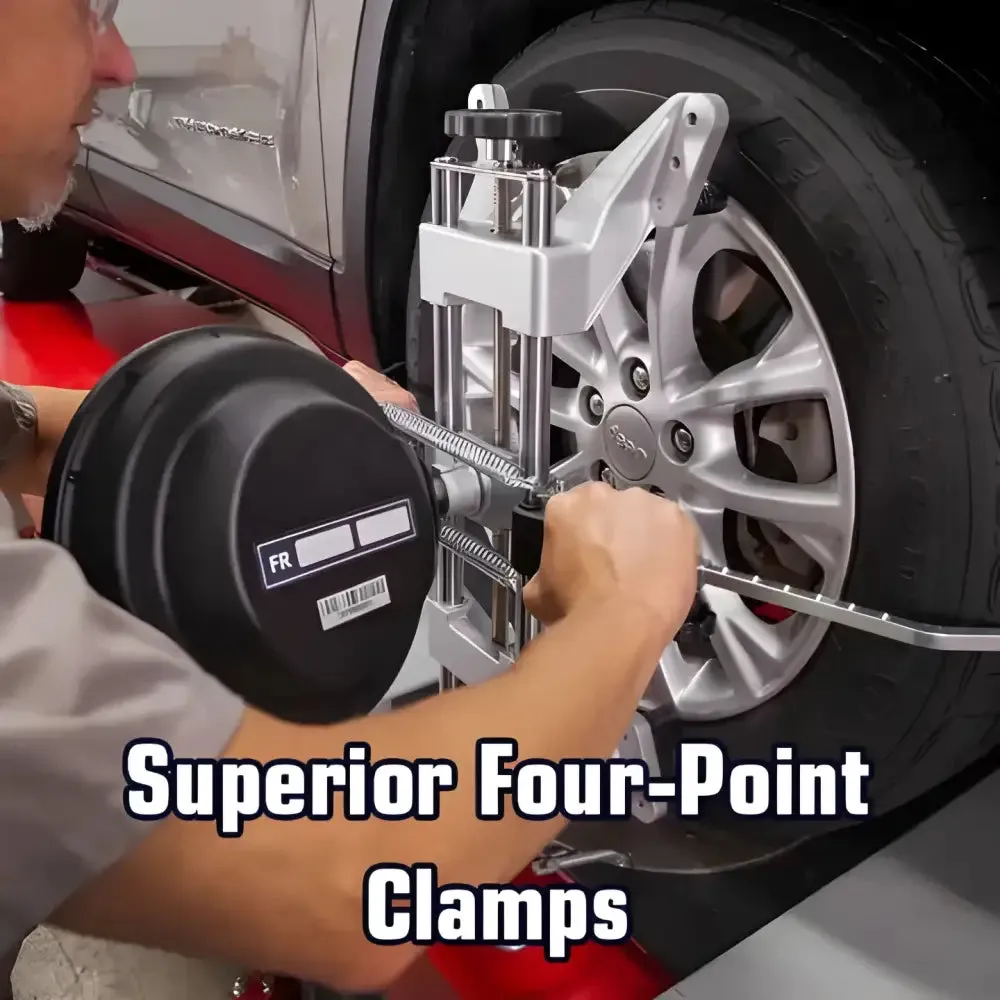

- Quick-locking clamps protect expensive rims during alignment

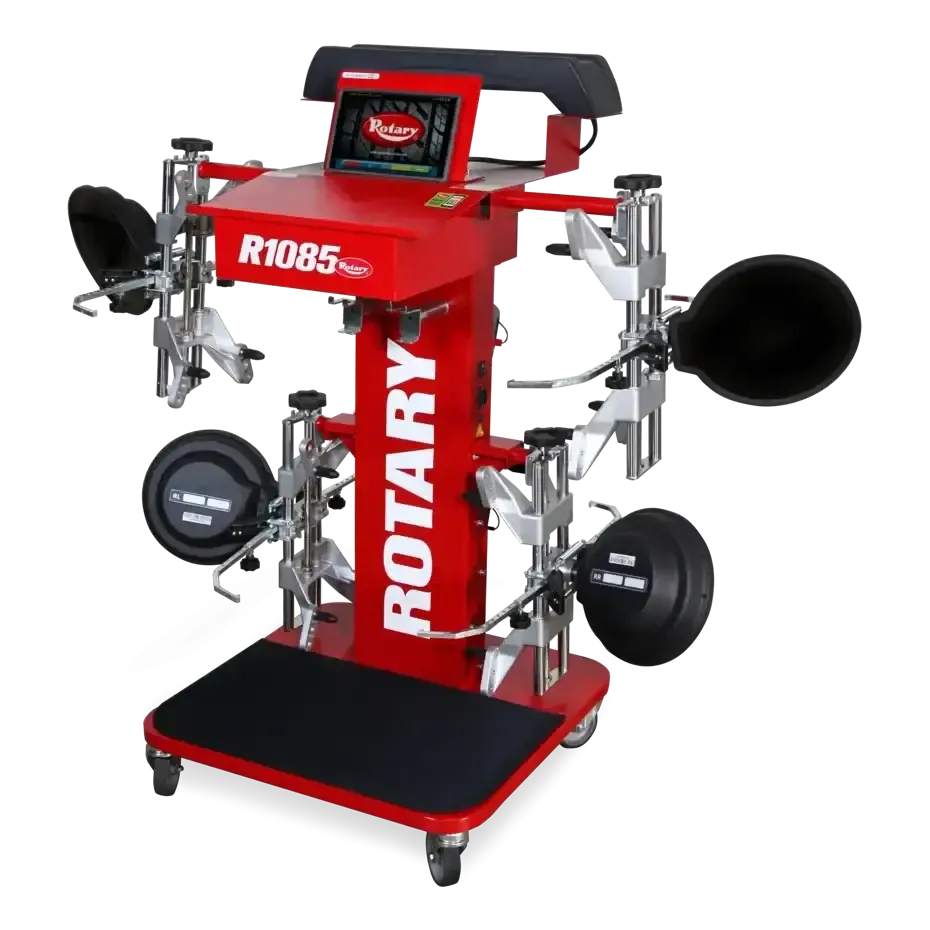

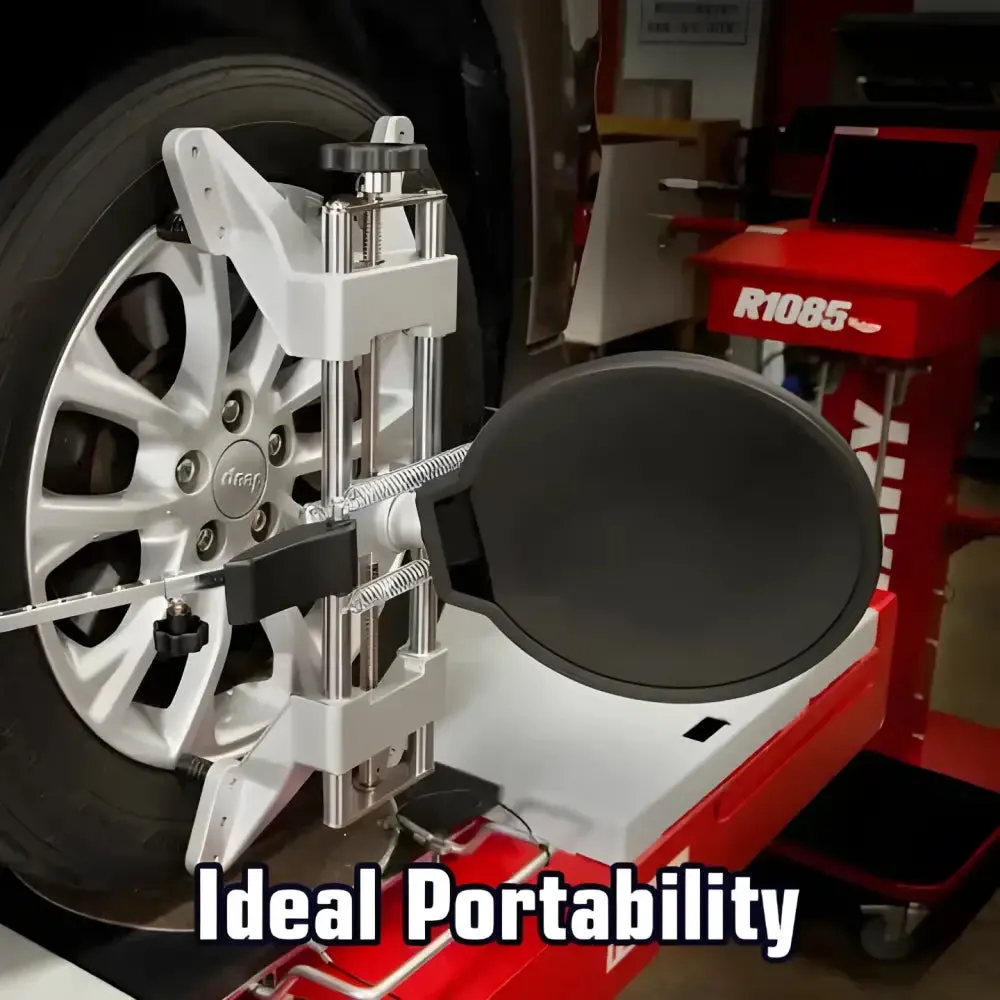

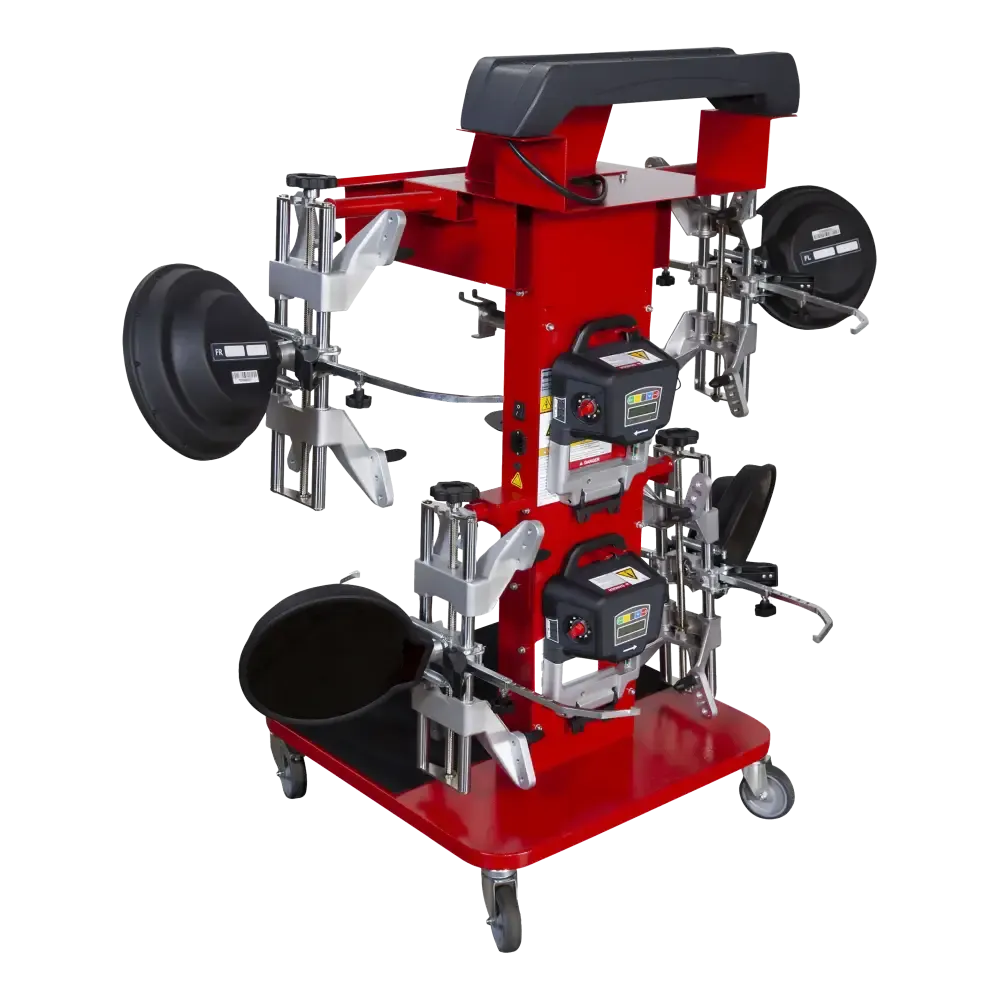

- Portable cart stores equipment, saving valuable shop space
- ADAS ready for advanced driver-assistance system integration
- No rollback required, saving time and reducing steps
- Two years of software updates included for peak performance
Specs:
Front Axle- Total Toe Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 20°
- Partial Toe Accuracy: /- 1ft
- Measuring Range: /- 1°
- Total Measuring Range: /- 20ft
- Set-back Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 5°
- Camber Accuracy: /- 2ft
- Measuring Range: /- 3°
- Total Measuring Range: /- 10°
- Caster Accuracy: /- 5ft
- Measuring Range: /- 10°
- Total Measuring Range: /- 18°
- King-pin Accuracy: /- 5ft
- Measuring Range: /- 10°
- Total Measuring Range: /- 18°
Rear Axle
- Total Toe Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 20°
- Partial Toe Accuracy: /- 1ft
- Measuring Range: /- 1°
- Total Measuring Range: /- 20°
- Set-back Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 5°
- Camber Accuracy: /- 2ft
- Measuring Range: /- 3°
- Total Measuring Range: /- 10°
- Thrust Angle Accuracy: /- 2ft
- Measuring Range: /- 2°
- Total Measuring Range: /- 5°
Power Supply: 110v / 1Ø / 60 Hz
Color: Red
Weight: 287 lbs
Qty: 1 Unit
Ref No.
ROTR1085
RWA3D1085
Similar Products
R1065 (CCD)
R1070 (Pro CCD)
R1090 (Pro 3D Aligner)
R5000HD (CCD Truck Aligner)
R1090 (Pro 3D Aligner)
R5000HD (CCD Truck Aligner)
Ref Name
Portable Aligner System
3D Wheel Alignment System
Tower-Free Aligner
Application:
Wheel Alignment ServiceFor Industries
Auto Dealers
Auto Fleets
Auto Repair
Collision Repair
Includes:
1 x Mobile Storage Cart1 x 10in Integrated Android Tablet
4 x STDA46EU 4-Point Wheel Clamps
16 x ABS Conical Tips
1 x Brake Pedal Depressor
1 x Steering Wheel Lock
1 x Automatic Battery Charger
4 x Clamping Arms For
- 8in to 24in Tire Diameter
- 10in to 36in Tire Diameter
