Simucube 2 Pro Direct Drive System - R2

Simucube 2 Pro Direct Drive System - R2

$ 57.54

$ 74.80

Save: $

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

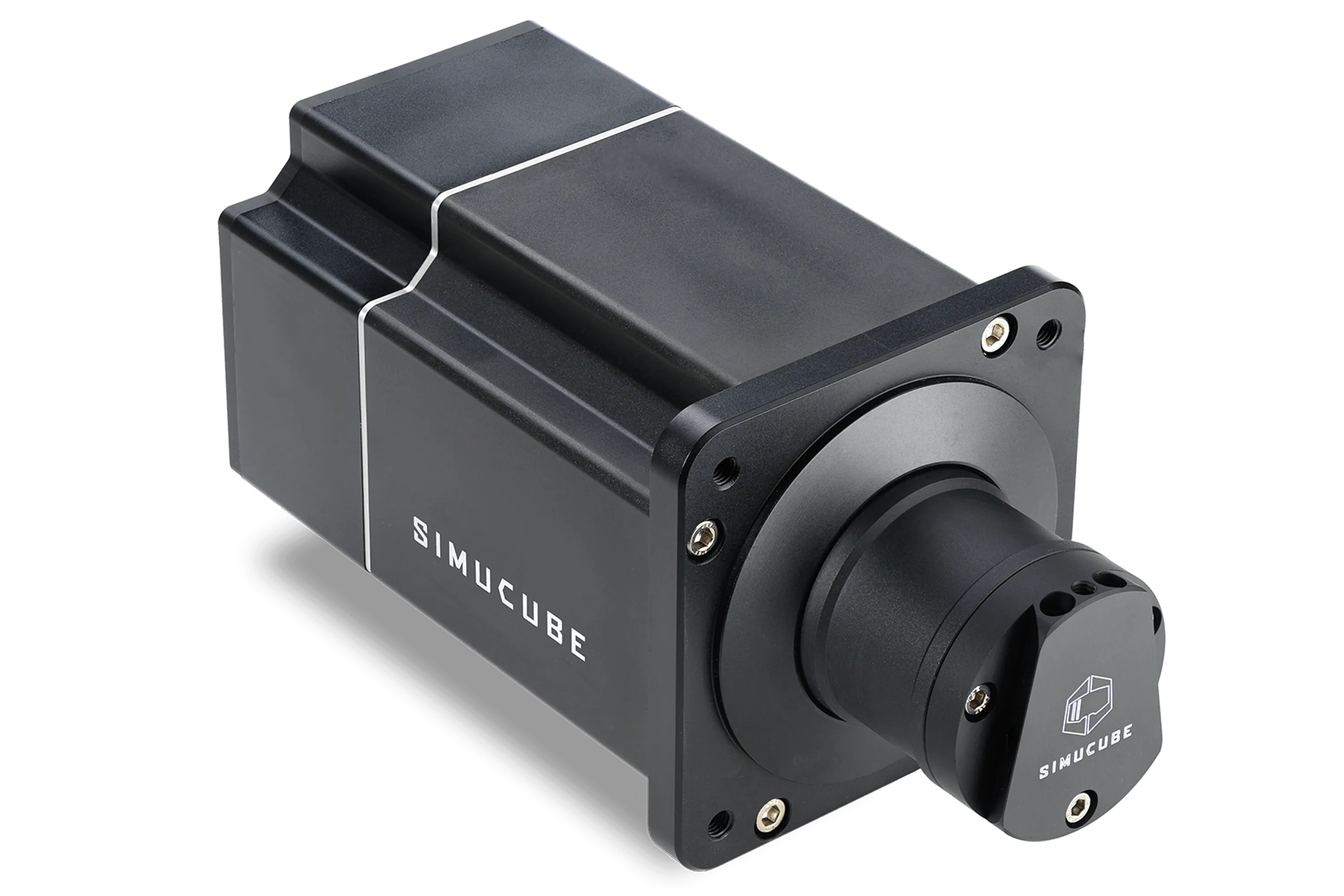

The Simucube 2 Pro Direct Drive System R2 raises the bar for sim racing steering wheel systems. It offers the most realistic and detailed force feedback currently available through a high torque, brushless motor. With 25Nm of torque available, the Pro is capable of providing a high level of immersion for any car or track combination. Ideal for professional sim racer and serious enthusiasts, the Pro offers an incredibly high torque response rate, which is also adjustable and amazing feedback clarity.

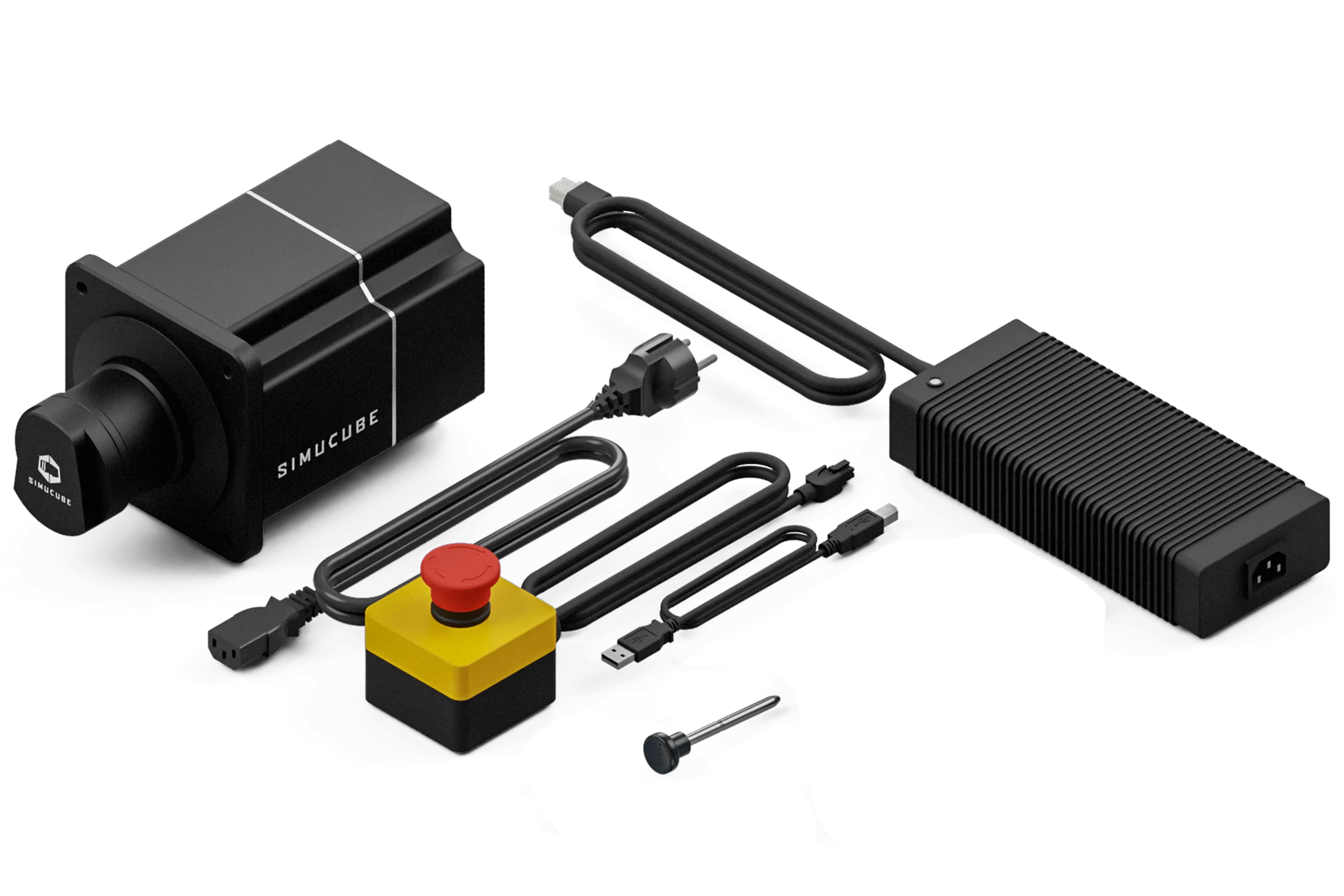

  • The Pro R2 comes with a single 450W power cable
  • The ultra low latency will give you incredible feel, you can feel and then correct those small slides sooner, putting you a step ahead of your opponents
  • A high efficiency direct drive motor and clever electronics heat guiding means the system produces less heat and doesn't require a noisy fan to keep it cool
  • Built in wireless receiver that will automatically connect to a wireless steering wheel and has an unbreakable millisecond range response time
  • 2 years manufacturers warranty

Not only can the Pro wheel base produce a huge amount of torque, it is also highly accurate with robotics grade angle sensors and high quality encoders. This combined with custom made electronics and all wrapped up inside a full metal CNC machined case means that the Pro is a solid unit that is capable of providing the very best in sim racing force feedback. The wheel base system works with the Simucube quick release wheel side kit which is available to purchase separately. The wheel side kit simply clips onto the wheel base and it locks in place with a safety pin. This system allows you to have multiple steering wheels where you can quickly change wheels with ease.


COMPARE MODELS

SIMUCUBE 2 SPORT

SIMUCUBE 2 PRO

SIMUCUBE 2 ULTIMATE

MOTOR

Direct Drive optimized ultra low torque ripple motor

High response speed Direct Drive optimized ultra low torque ripple motor

Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor

SIMUCUBE WIRELESS WHEEL™ SUPPORT

Included

Included

Included

SIMUCUBE QUICK RELEASE™

Not Included

Not Included

Included

MAX TORQUE *

17 Nm

25 Nm

32 Nm

MAX TORQUE SLEW RATE

4.8 Nm/ms

8.0 Nm/ms

9.5 Nm/ms

ANGLE SENSOR

22 bit absolute

22 bit absolute

24 bit Hiperface

TORQUE OFF BUTTON

Standard (Premium optional)

Standard (Premium optional)

Premium (with remote power switch)

POWER SUPPLY

280 W

R2 1 x 450 W Peak

1000 W

WHEEL BASE DIMENSIONS INCL. SQR™

130 x 130 x 250 mm

130 x 130 x 270 mm

115 x 115 x 310 mm

MOUNTING HOLES

M8 x 4 pcs threaded hole

M8 x 4 pcs threaded hole

9 mm dia x 4 pcs through hole

MOUNTING HOLE PATTERN DIA

145 mm

145 mm

130 mm

FLANGE CENTERING HOLE DIA

110 mm

110 mm

110 mm

WHEEL BASE WEIGHT

8.0 kg

11.1 kg

11.3 kg

STANDARD WARRANTY

24 months

24 months

60 months

*) Torque is continuous until motor gets very hot. In preliminary testing, no-one has managed to cause torque to start throttling.

SIMUCUBE 2 SPORT

SIMUCUBE 2 PRO

SIMUCUBE 2 ULTIMATE

TORQUE RECONSTRUCTION PROCESSING

Yes

Yes

Yes

STATIC FORCE REDUCTION

Yes

Yes

Yes, in detail adjustable

NATURAL DAMPING, INERTIA AND FRICTION FILTERS

Yes

Yes

Yes, in detail adjustable

ULTRA LOW LATENCY MODE

Yes

Yes

Yes

TORQUE SLEW RATE ADJUSTMENT

1 – 4.8 Nm/ms

1 – 8.0 Nm/ms

1 – 9.5 Nm/ms
